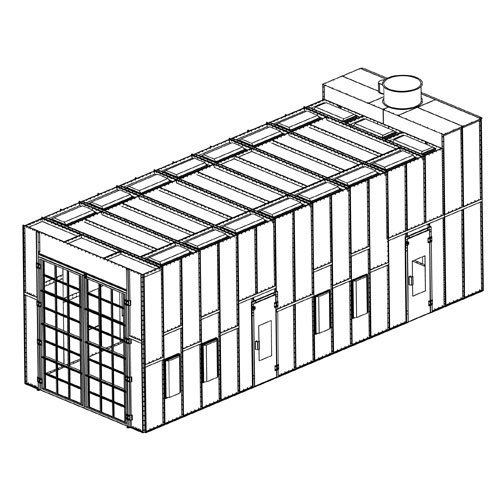

RTT Col-Met 45-Foot Deluxe Truck Paint Booth

SKU #1700334
  • Description
  • Reviews
  • Videos
  • Tech Sheets

Col-Met Finishing Solutions is now RTT Engineered Solutions

Col-Met 45-Foot Deluxe Truck Paint Booth now includes Long Life LED Lighting

Booth Specifications

  • External dimensions: 44' 4" long x 17' 0" wide x 18' 6" high.
  • Large interior space: 16' x 16' x 44' inside.
  • M6 x 4.4 I-beam supports.
  • All panels are air-tight, 18 gauge galvanized prime steel fastened with 5/16" bolts.
  • All panels have 2" flanges with pre-punched holes for easy nut-and-bolt assembly.
  • Gabled roof design gives better air flow, lighting and overall strength.
  • (24) LED light fixtures
  • 42" diameter tubeaxial fan with aluminum spark-proof blades.
  • Fan motor is 3 phase 208/240/480 volt, 25,600 c.f.m. @ .5" static pressure. (single phase optional)
  • Panic safety latches on all doors.
  • Air solenoid valve shuts air off when door is opened. (optional)
  • Booth uses inexpensive 20" x 20" intake and exhaust filters
  • Equipped with Dwyer manometer draft gauge for exhaust filter monitoring.
  • Meets NFPA 33 & OSHA 1910 guidelines (check your local codes for local permit requirements)
  • All quality components proudly made in the USA!

Ships by truck freight. You will be contacted with final shipping charges.
Forklift required at time of delivery.

Our Paint Booth DVD walks you through differences between the different booth models and will help you select the correct booth for your painting needs.
