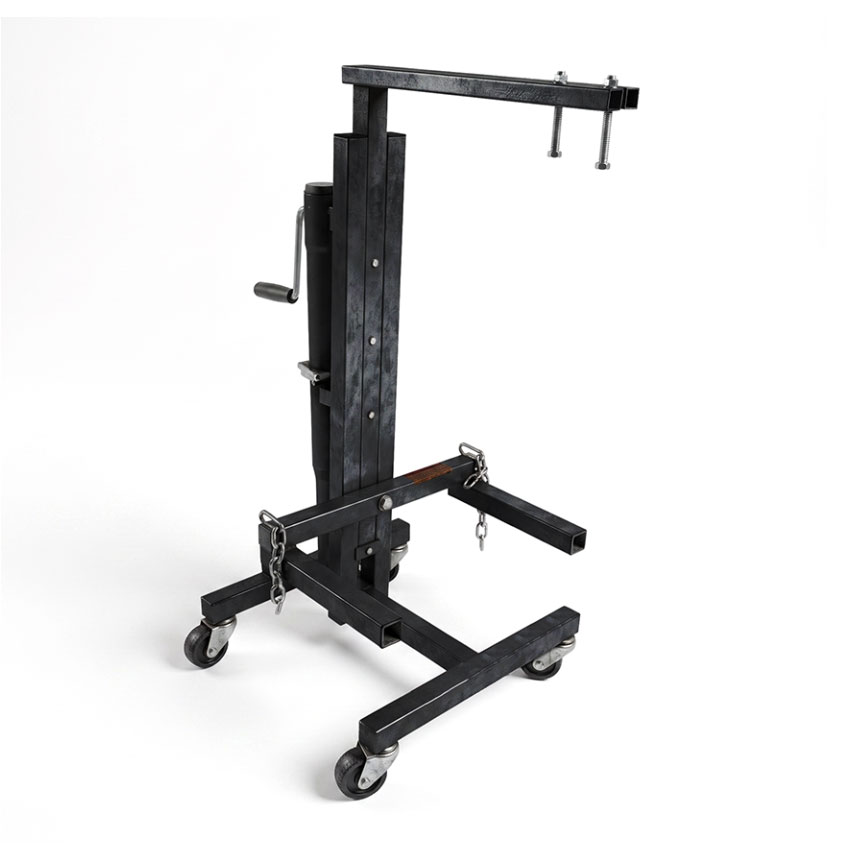

CHAMP® Door Dolly / Bumper Dolly

Review star icon Review star icon Review star icon Review star icon Review star icon (2 reviews)
SKU #1815789
Price:
$419.59
  • Description
  • Reviews
  • Videos
  • Tech Sheets

BEST SELLER!

Hang doors and bumpers conveniently with the Champ Door Dolly / Bumper Dolly. This unit is fully self-contained and works without a hydraulic or air connection. The bumper and door dolly cart can lift from 9" to 29" high with hand crank. With an adjustable height feature, it can accommodate doors between 27" and 48".

Owing to the UPS regulations on the box size, this Door and Bumper Dolly is shipped in a partially assembled form. In addition to the base, tower with 4 adjustment holes and tower extension, the box contains the following parts for assembly.

  • (4) 3" casters and nuts
  • (6) 1" square end plugs
  • (2) Bumper hooks
  • (1) Bent rubber coated rod
  • (1) Straight Rubber Coated Rod
  • (1) Plastic knob with threaded stem
  • (2) Chains
  • (2) Wing nuts
  • (2) 1/4" x 3/4" Bolts
  • (12) 1-1/2" square end plugs
  • (4) Flat Washers
  • (2) Fender Washers

How to assemble the Champ Door and Bumper Dolly

  • Assemble bumper hooks by making use of the hardware and chain included in the packing. The chain assembly bumper hooks must be clicked onto the snap links found on the cradle.
  • Use the 5/16" nut and lock washers to install the casters in the pre-drilled holes at the unit base. The square finishing caps enable sealing the ends of the tubing, after you have the casters securely in place.
  • Position the plunger inside the center vertical tube that extends from the base. Place the plunger in such a manner that the extension arms extend over the cradle of this Door and Bumper Dolly, and secure it with a plastic knob.
  • Attach the straight and bent rubber coated rods to the tower extension using two fender washers and two wing nuts. Insert the rod through the gap in the extension and place the fender washer over it. The wing nuts can be used to hold the structure firmly in place.

Technical Specifications

  • Capacity: 200 lb
  • Lift Range: 9" to 29"
  • Height Adjustment Range: 27" to 48"
  • Made in the USA
Write a Review

Reviews

2 reviews
Review star icon Review star icon Review star icon Review star icon Review star icon
the finish was ...
By thomas major on Aug 19, 2009
the finish was not great the paint came off in my hands when i pulled it out of the box. when mounting the casters I had to file down the burs from where the holes were pre drilled. Once I got it together the jack worked great and was a huge help in aligning my doors. A little more quality control and i would have rated it 5 stars. the tool works as advertised

Review star icon Review star icon Review star icon Review star icon Review star icon
Arrived damaged very ...
By Daniel Sweney on Mar 28, 2019
Arrived damaged very poorly packaged Jack handle bent vey very cheap quality. Top tubes are bent and crooked/twisted very weak....they're so thin the plastic trim caps won't stay in....used a pair of Knipex pliers to squeeze the wall of tubing together to keep them in place. Exceptionally poor workmanship. Instead of having a plastic slide on the vertical tubes they used cheap peice of strap iron and it's metal on metal.....that's bent as well.....a high school shop class could engineer and build this better. Only reason for 1 star and not 0 is shipping was fast. Will be making my own in the near future and sending this with scrap pile.....definitely not worth the 300 wasted on this inferior product. I expected better for the money....not Snap-on nice but at least a working tool with decent material and at a minimum Chinese quality.
